Amateur Radio

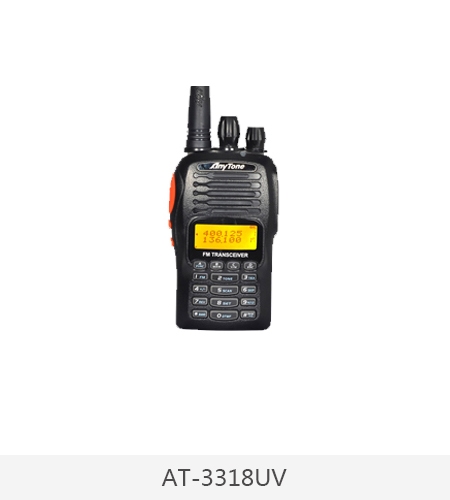

AT-3318UV

Name: Amateur Radio

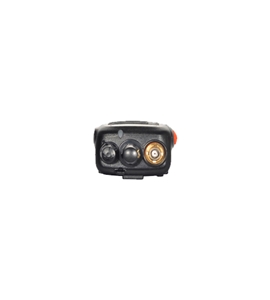

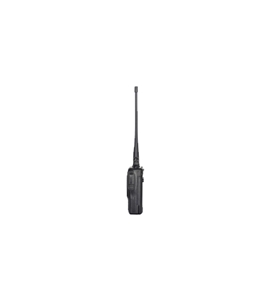

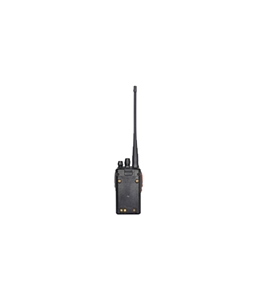

Other side of radio

  • Features
  • Specification

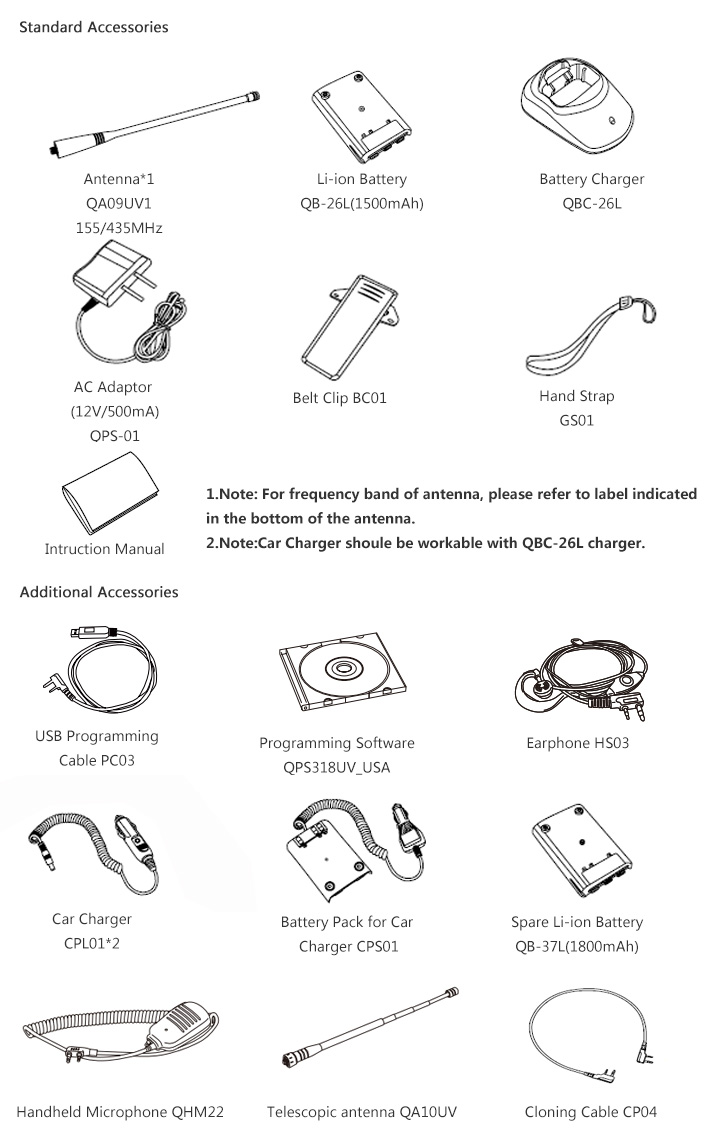

  • Accessories
Working mode:UU,UV,VV, VU,UV or UU as repeater mode(Type C,Type D).
200 Channels+2 groups VFO.
Output Power:5W/0.5W
51 groups+1 group user defined CTCSS+1024 groups DCS encode and decode.
DTMF+2Tone+5Tone encode and decode.
Multi scan: VFO scan+channel scan+priority scan+CTCSS scan+DCS scan.
VOX function(10 levels) Squelch Tail Elimination.

General
Frequency Range 3318UVA USA version(FCC market) European Version(CE market)
VHF:136-174MHZ
UHF:400-480MHZ（Ex:400~520MHz）
FM:76~108MHz(Rx) 		VHF:144-146MHZ
UHF:430-440MHZ
FM:76~108MHz(Rx)
3318UVD VHF:136-174MHZ
UHF:400-480MHZ(Ex:400~520MHz） 		VHF:144-146MHZ
UHF:430-440MHZ
FM:64~108MHz(Rx)AM:118~136MHz(Rx)
SW:2.3~29.99MHz(Rx)LW:0.52~1.71MHz(Rx)
3318UVE (USA only) VHF:136~174MHZ 220~260MHz(Rx) 222~225MHz(Tx)
UHF:400~480MHZ(Ex:400~520MHz）
FM:64~108MHz(Rx)AM:117~137MHz(Rx)
SW:2.3~29.99MHz(Rx)LW:0.52~1.71MHz(Rx)
Channel Capacity 200 channels
Channel Spacing 25KHz (Wide Band)  12.5KHz (Narrow Band)
Phase-locked Step 0.1KHz
Operating Voltage 7.4V DC±20%
Battery Life More than 12 Hours (1500mAh), by 5-5-90 working cycle
Frequency Stability ±2.5ppm
Operating Temperature -20℃~ +55℃
Size 117.5×60×35.5mm (with battery)
Weight 235 g (with battery)
